| Military Leather Name Tag Tapes Printing Equipment and Supplies Demo Photographs Hot Foil Stamping Equipment use to Imprint MILITARY LEATHER NAME TAGS |
| How to Order Imprinting Machine P/N: HM-150 Gauge Bar and Cushion Boards P/N: GB-150 (used to align Name Tag in machine) News Gothic Condensed Type Set of Alpha Characters, CAPS with Numbers P/N: TXG1818GC News Gothic Capital Alpha Characters, CAPS with Numbers and Puncuation these are special deep etched letters (used most for this type of work) old P/N: TXG1818LST and NST New part number for Complete CAP set TXG1818NG Spacer set P/N: TX1890 Typeholder for 1 to 3 lines, with dividers in place for ease of use, P/N CHM-318 (recomended for names) Typeholder also available 1 1/2 x 3 1/2 P/N TS-150 (recomended for printing emblems) Typeholder for 1 or 2 lines of type. (replaces the TH-183 and THSR-2193) P/N CHM-318 Gold Foil 3" wide x 40' long P/N: 912 x 30 x 040 Replaced with P/N: 18LM-4 (now 4" wide) Silver Foil 3" wide x 40' long P/N: 101130 x 040 Replaced with P/N: 19Q-4 (now 4" wide) Storage box for Type Pieces P/N: TB7 (or new P/N: TT-1) Storage Tray for Spacers P/N:SP1 (or new P/N: TT-3) |
| Please email or call us to discuss your requirements. Contact us |
| CHM-318 Is a 3 line, 18 point, typeholder. It is designed to set type for the lines that are imprinted below the military emblems. |
| TS-150 Box typeholder 1 1/2 x 3 1/2 Capacity Mix Type & Dies in same holder |
| Gauge Bar A must for: Imprinting Leather Name Tags This allows you to set up a back and left side stop, use to align leather name tag in machine during printing. Fully adjustable side guide Converts to left or right hand |
| HHM-150 |
| Alpha Characters CAPS with Numbers and Punctuation Type - Letters |
| Part No.: TXG1818NG |
| 18 News Gothic CAPS with Numbers and Poings Deep etched type This Type is used most commonalty for Name Patches |
Here we have the system set up
The Gauge bar is in place on the HM-150 so the Leather name Tag is centered under the printing head.
Next the CHM-318 has the Alpha Character (type) set with the name, Rank and other information. The two lines are centered in the
typeholder, assuring line up on the Name Tag.
The Military Emblem or Insignia is locked up in the Center of the TS-150. Extra spacer bars are provided for different size dies.
The Gold foil can be loaded in the machine; however, it has been removed here for ease of viewing. Further, in our shop we imprint
similar products with the foil out, because it allows for better viewing under the type head, and when the hot stamping foil is laid in by
hand it is not affectd by preeheating and prints better.
The Gauge bar is in place on the HM-150 so the Leather name Tag is centered under the printing head.
Next the CHM-318 has the Alpha Character (type) set with the name, Rank and other information. The two lines are centered in the
typeholder, assuring line up on the Name Tag.
The Military Emblem or Insignia is locked up in the Center of the TS-150. Extra spacer bars are provided for different size dies.
The Gold foil can be loaded in the machine; however, it has been removed here for ease of viewing. Further, in our shop we imprint
similar products with the foil out, because it allows for better viewing under the type head, and when the hot stamping foil is laid in by
hand it is not affectd by preeheating and prints better.

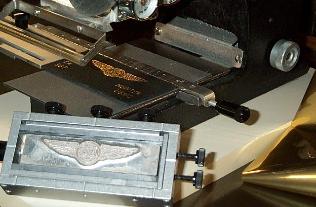

| The TS-150 is shown here. Military Emblem or insignia centered in the holder. Also, see how Gauge bar is installed. Always use a cushion board under your printing material. |

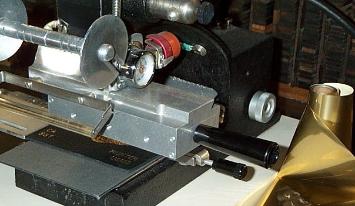

| The TS-150 is shown here being inserted into the right side of the machine. |
| The TS-150 is shown here from the side/rear of the machine. |
| The CHM-318 is shown here from the side/rear of the machine imprinting on the Leather. |

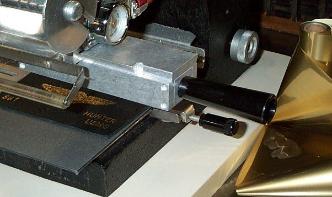

| The CHM-318 is shown here being inserted into the right side of the machine. |
| The CHM-318 is shown here. Alpha Characters (type) of name and other information is centered in the holder. |

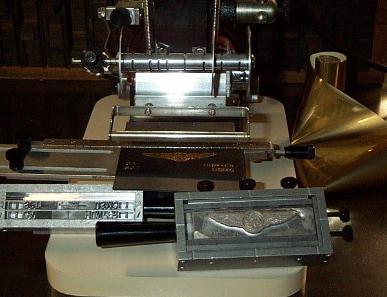

| And here you have it. Both typeholders shown set up to imprint and the finished product |
