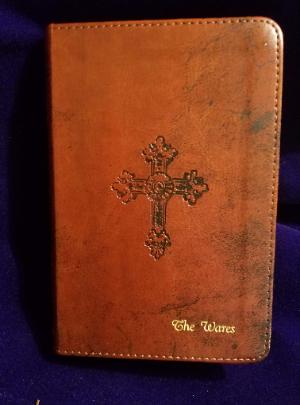

| Personalized Imprinted Engraved Bibles & Bible Imprinting Personalizing Service Available to Businesses and Churches or Purchase your own machine - See Below |

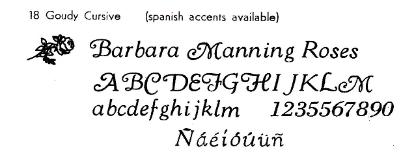

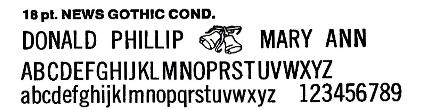

| On the RIGHTis the most commonly used Hot Foil Stamping Type for doing Personalized Engraved Bible Imprinting, 18 point Goudy Cursive Goudy Cursive has a pleasing look, with nice open letters, that creates a clean crisp impression that is stylized yet very legible. Also available is 18 point News Gothic Condensed. Again, In clean open face, good for those times when you have a lot of copy you wish to put on one line For More Type Options click here or Contact us today for details and to purchase. |
| If you wish to offer affordable personalization of your Bibles with in-house Bible imprinting system for your Christian Book Store or Christian Gift Shop. We feel you will find this machine is the answer. There are so many great things to talk about when discussing Bible Personalization and using this particular hot foil stamping embossing machine so..... Please give us a call to discuss your requirements. 310-890-2164 or email us |

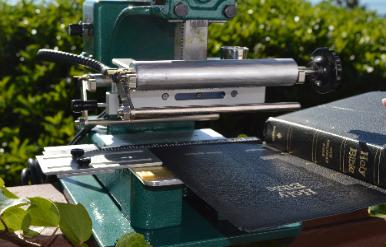

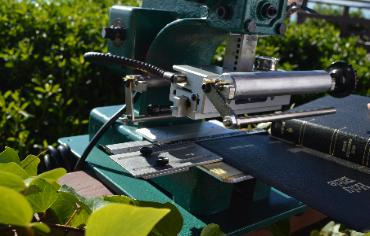

| Getting set up to Emboss or Personalize a Bible On the LEFT a Gauge Bar is used to align the bible under the machine head The Gauge Bar allows you to have a right angle stop. The Gauge Bar moves forward and back and the side stop moves left and right. This is how you set up the position of the imprint to be emboss or personalize on different size Bibles. Below is a demonstration of the 4 line 5" type holder designed for doing 1 to 4 lines, adding ornaments or dates with ease of set up. Note that do not load the foil on the foil feed. In our shop we do not use the foil feeds when doing leather items or Bible Imprinting. Leaving the foil off allows us greater visibility of the imprint area. It is particularly important when stamping a rough material as you will want to blank stamp the material first in order to "iron" or smooth out, with the type, where the imprints goes. Then lay the foil in by hand and kiss or "lay" the foil into the imprint a area. Machines are shipped with out a foil feed for those doing Bible Imprinting or Leather work. |
| Manual Foil Feed for Long Run Jobs |

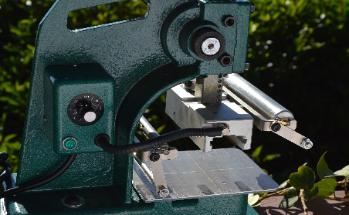

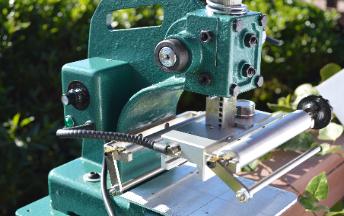

| Heat Controller of Better Imprints |

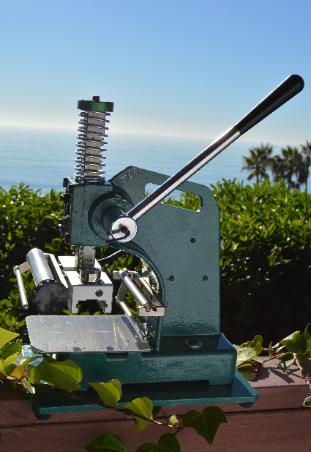

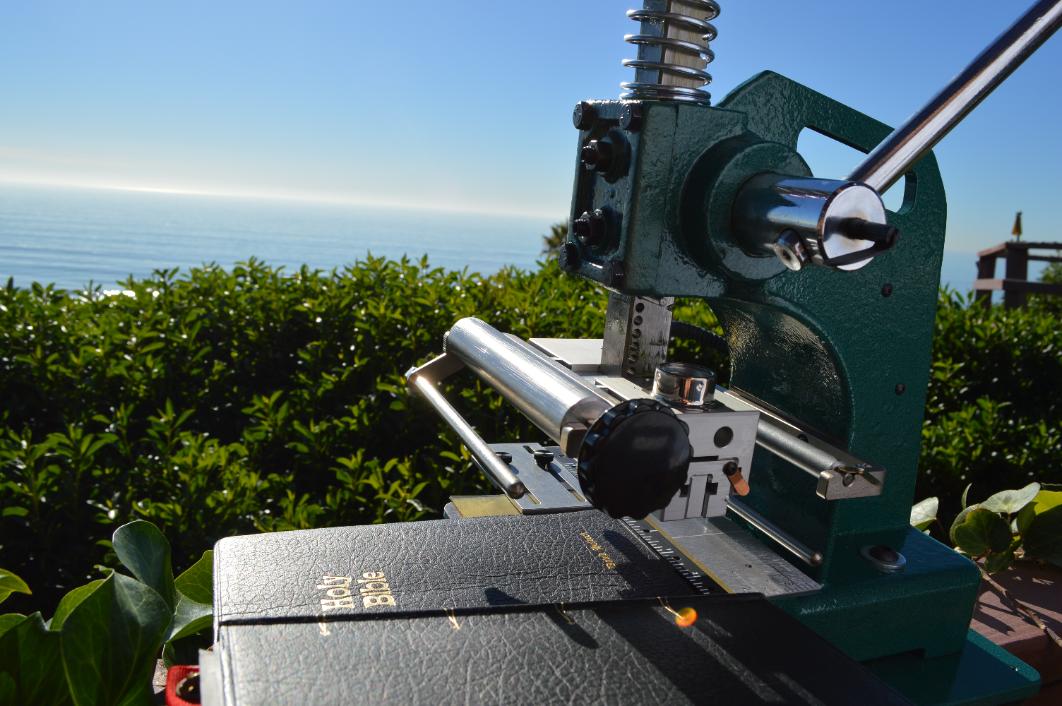

| Right Side View showing 4" depth of throat and 3 1/2' of clearance under the head for great visibility of imprint area |

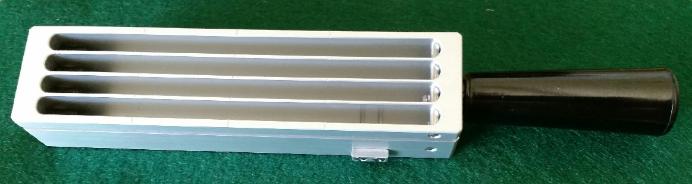

| Setting the Hot Foil Stamping Embossing Metal Printers Type in the 3 line, 18 point, 5 inch Typeholder It should be noted that the handle of the Typeholder is to our left and the nick in the type is up. The name Harold is set left to right with the nick up starting on the bottom line. Setting the type in this manor allows the typeholdr to be inserted in the Left side of the machine thus avoiding the handle of the holder crashing into the spine of the Bible (see incorrect method below) |
| Hot Foil Stamping Embossing Metal Printing Type for Personalized Bible Imprinting |

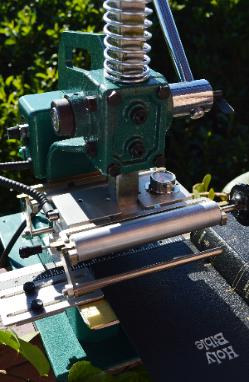

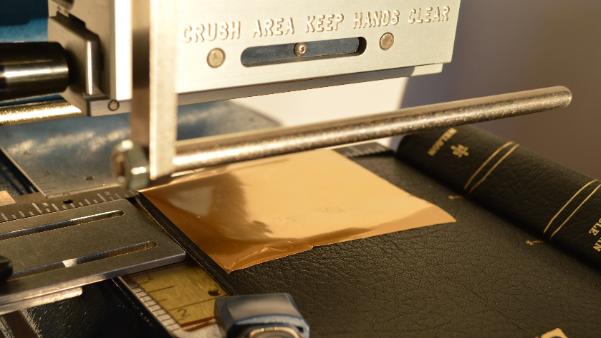

| Placing the Foil and Clamping down the work Shown here is the Bible about to be Imprinted with Gold Foil. Note again that we cut a small piece of foil and lay it under the head prior to imprinting. Note the clamp in the center of the photo. Clamping the bible to the metal base plate. This helps hold the Bible in place while blank stamping and then foiling the Bible. It is sometimes necessary to prop up the right side of the bible with a box or other item to help insure the Bible does not move during the Imprinting operation. |

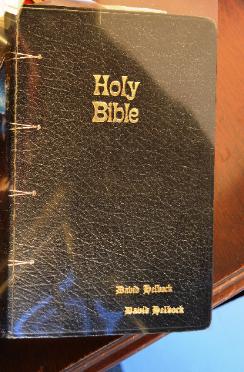

| We suggest always F I R S T stamping on a clear piece of acetate and laying it on the book so you can see exactly where the imprint is going to land and to check spelling. |

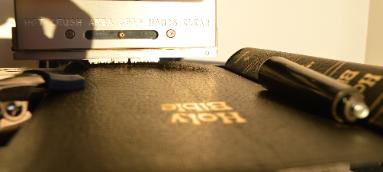

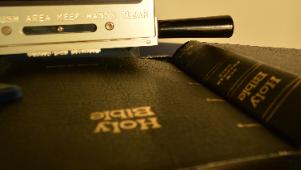

| Note: If you set the type the other way and insert the Typeholder from the Right side. No worries just remove the handle so it does not crash into the spine of the Bible |
